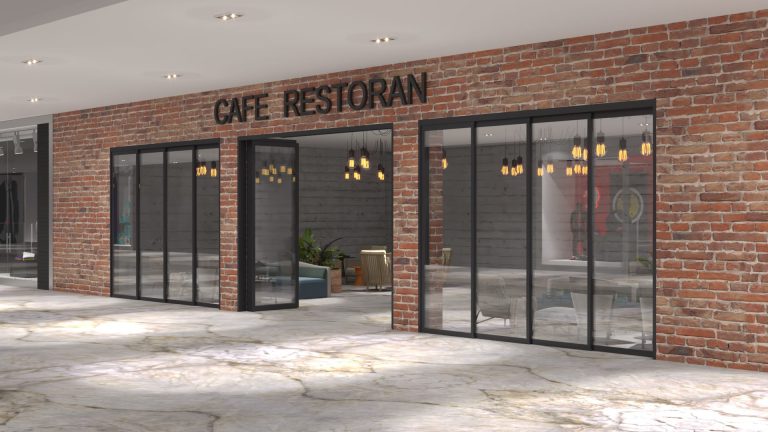

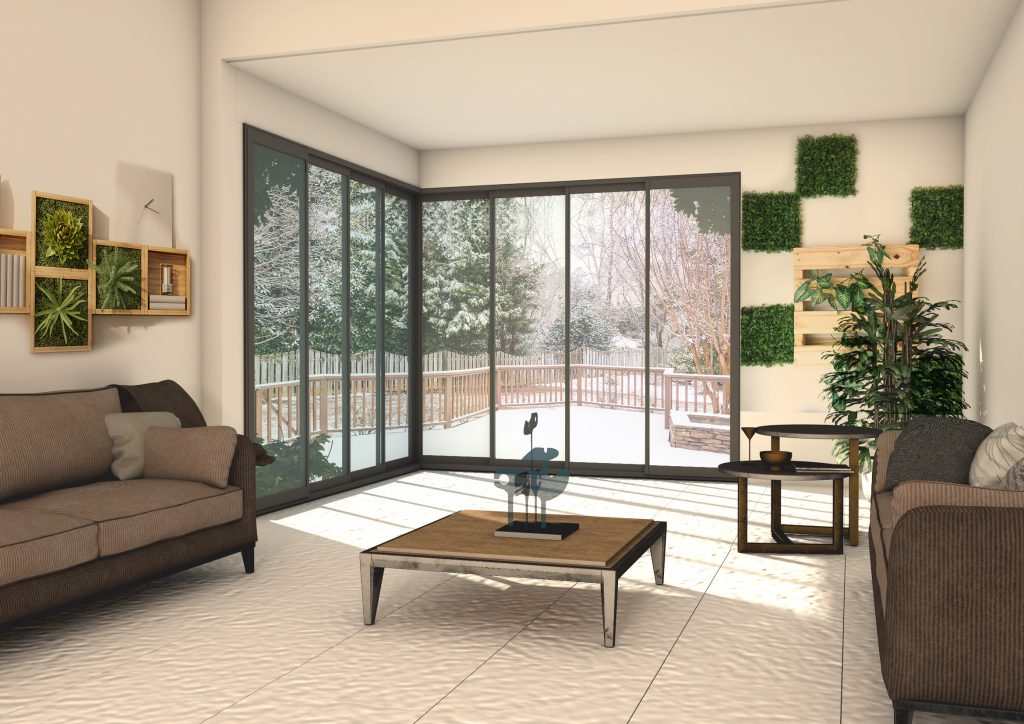

New generation Life Everest top hanging sliding series; It is a series designed for use in terraces, winter gardens, restaurants, offices and partitions with maximum passage area in sliding systems known for their ease of use. The system works by moving in the upper rail profile with a specially designed carrier bearing attached to the panels. Particularly by opening the panels inwards like a door after opening, an unobstructed passage area is provided with the use of profiles in narrow and wide areas. With the newly designed polyamide barrier profiles, aluminum sweating is prevented in adverse weather conditions and extra insulation is provided. Depending on the intended use of the system, it can be applied without threshold or as zero threshold.

Technical Details

Aluminum Profiles:EN6063 T4

Profile color option:rall painted, wood veneer

Glass option:22mm tempered insulating glass

Carrier bearing:Delrin coated 608zz bearing

Maximum height:2800 mm

Panel width:350-800mm

Insulation:UV Additive Bristle roving, gasket
